Magnets, bearings and special parts
Magnets, bearings and special parts |
|
not finished 071120
|

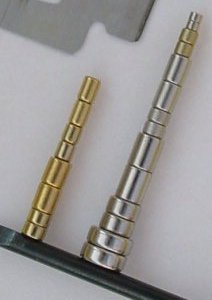

Neodyme-Fer Magnets --
Great for slow flyers - see our 2004 documentation
and our Bahoma system (Battery
holding)
|
 |
|
| Mag1208 Ø 1.2 x 0.8mm 0.006 g lift >20g |
10 pieces 3.50CHF
ca € 2,20 $ 3.00 |
Mag1616 Ø 1.6 x 1.6 mm 0.018 g lift >30g |
10 pieces 3.50 CHF
ca €2.20 $ 3.00 |
| Mag1622 Ø 1.6 x 2.2 mm 0.020 g lift >40g |
10 pieces 3.50 CHF
ca €2.20 $ 3.00 |
|
| Mag2012 Ø
2 x 1.2 mm 0.024g lift > 80g |
10 pieces 4.00CHF ca €2.80 $
3.30
|
|
| Mag2022 Ø
2 x 2.2mm 0.0?g gold plated lift > 100g |
10 pieces 4.50CHF
ca €3 $ 3.80 |
|
| Mag2025 Ø
2 x 2.5mm 0.0?g gold plated lift > 100g |
10 pieces 4.00CHF
ca €3 $ 3.80 |
|
| Mag2530 Ø 2.5 x 3mm 0.065g lift > 200g |
10 pieces 4.60CHF
ca €3 $ 4.80 |
|
| Mag3015 Ø 3 x 1.5mm 0.065g lift > 150g |
10 pieces 4.50CHF
ca €3 $3.80 |
|
| Mag4015 Ø 4 x 1.5mm 0.14g lift > 200g |
1 piece CHF 0.50
ca € 0.30 $ 0.60 |
|
|
Bearings see our 2003
documentation
|
| Rivets 6 pieces |
RI 073 ø 0.73 x 8mm |
CHF 0.60
€0.40 $0.50 |
|
| RI 080 ø 0.80 x 8mm | |||
| RI 094 ø 0.94 x 8mm | |||
| RI 150 ø 1.50x 12mm | |||
| Brass bearing 6pieces |
BB1808 ø 1.8 x 1.9mm bore ø 0.81 |
CHF 1.60
€1.10 $1.20 |
|
| BB1810 ø 1.8 x 1.9mm bore ø 1.00 | |||
|
Quicklock |
QL08 ø 4 x 0.2mm For axis 0.75 to 0.82mm |
CHF 1.60
€1.10 $1.20 |
|
| QL10 ø 4 x 0.2mm For axis 0.95 to 1.00mm |
|||
| Washer 10 pieces |
W11 ø1.1 x ø3.2mm x 0.3mm |
CHF 1.20
€ 0.80 $ 0.95 |
|
| See our 2003 gear documentation with design examples | |||
|

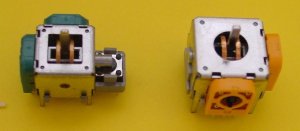

Miniature joystick
|
 |
|
|
JN1 JN2 |
CHF 5.50
ca € 3.00 $ 4.50 |
|
|
Propeller
|
 |
|
|
CP120-90 13 CHF |
CHF 13.00
ca € 8 $ 11 |
|
|

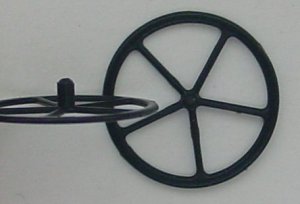

Ultralight wheels
|
 |
|
|
WH16 1.20 2 wheels 16mm diameter, 0.04g per wheel
|
CHF 1.20
ca €0.80 $1 |
|
missing: PC02 prop connector CS11mm connector kit joystick JN1 ..
 |
CH-1092 Belmont/Lausanne |
